Manufacturing Technology

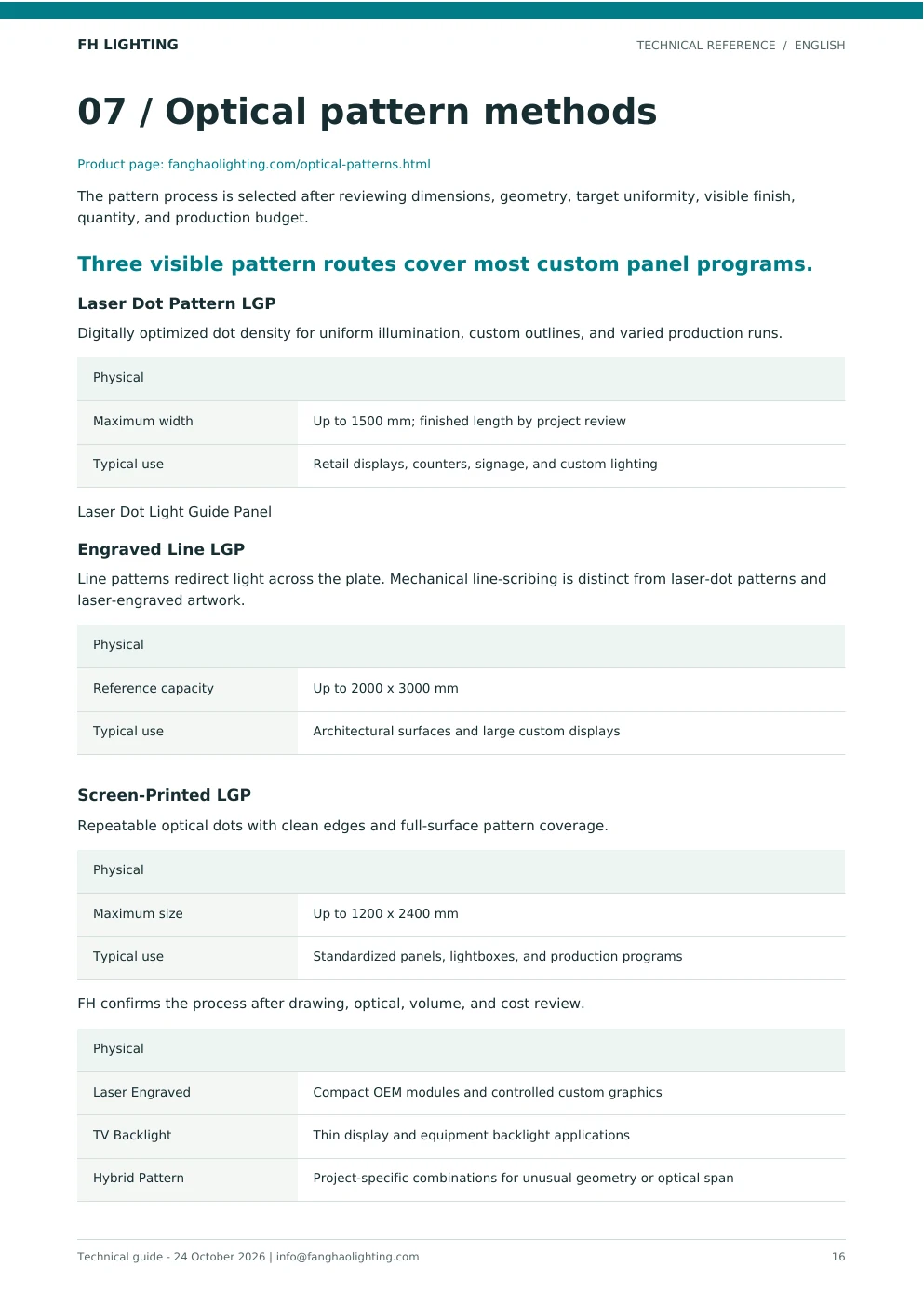

The pattern process is selected after reviewing dimensions, geometry, target uniformity, visible finish, quantity, and production budget.
Primary Methods
Digitally optimized dot density for uniform illumination, custom outlines, and varied production runs.
| Physical | |
|---|---|
| Maximum width | Up to 1500 mm; finished length by project review |
| Typical use | Retail displays, counters, signage, and custom lighting |
Line patterns redirect light across the plate. Mechanical line-scribing is distinct from laser-dot patterns and laser-engraved artwork.
| Physical | |
|---|---|
| Reference capacity | Up to 2000 x 3000 mm |
| Typical use | Architectural surfaces and large custom displays |
Repeatable optical dots with clean edges and full-surface pattern coverage.
| Physical | |
|---|---|
| Maximum size | Up to 1200 x 2400 mm |
| Typical use | Standardized panels, lightboxes, and production programs |
FH confirms the process after drawing, optical, volume, and cost review.
| Physical | |
|---|---|
| Laser Engraved | Compact OEM modules and controlled custom graphics |
| TV Backlight | Thin display and equipment backlight applications |
| Hybrid Pattern | Project-specific combinations for unusual geometry or optical span |

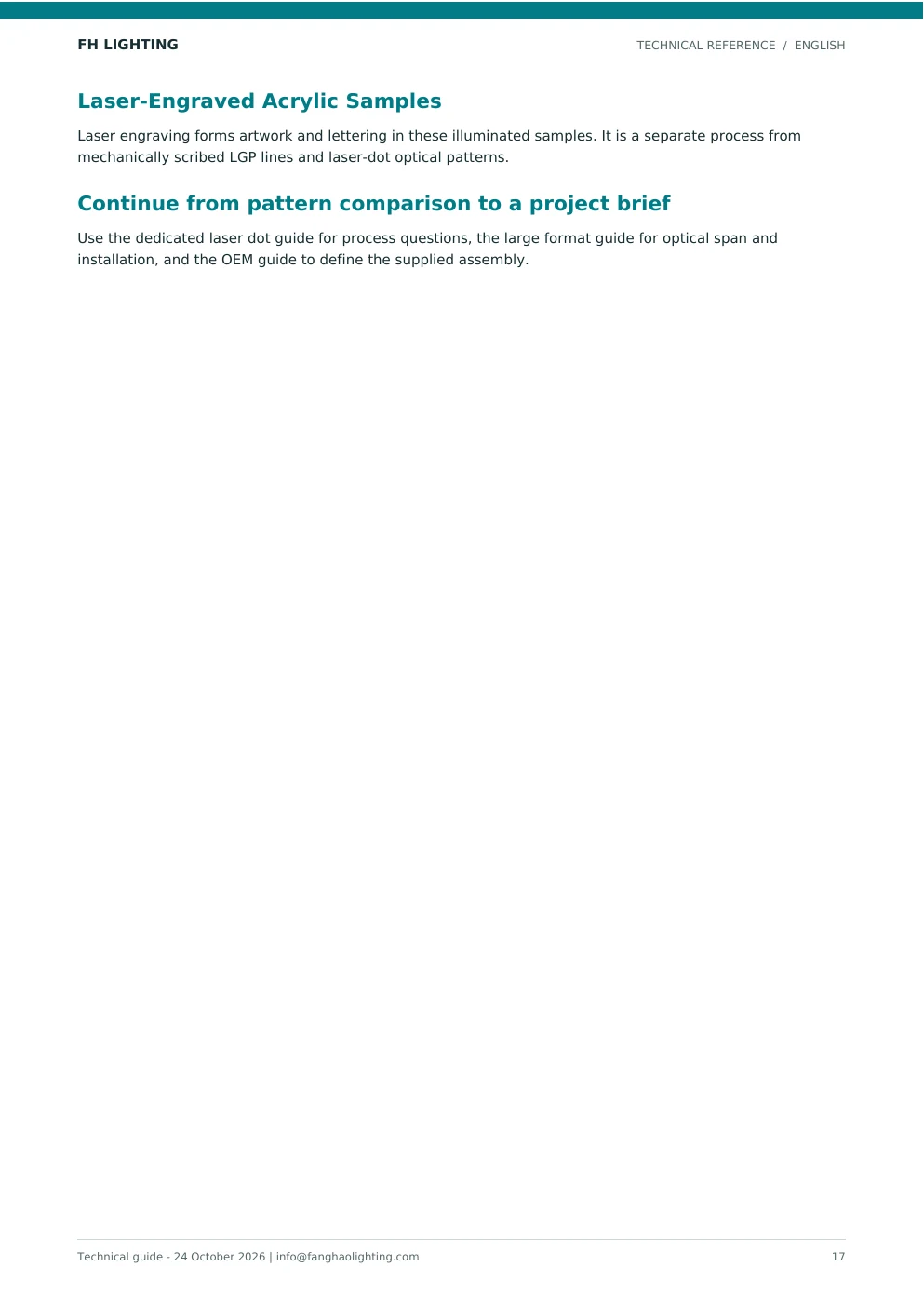

Laser engraving forms artwork and lettering in these illuminated samples. It is a separate process from mechanically scribed LGP lines and laser-dot optical patterns.
